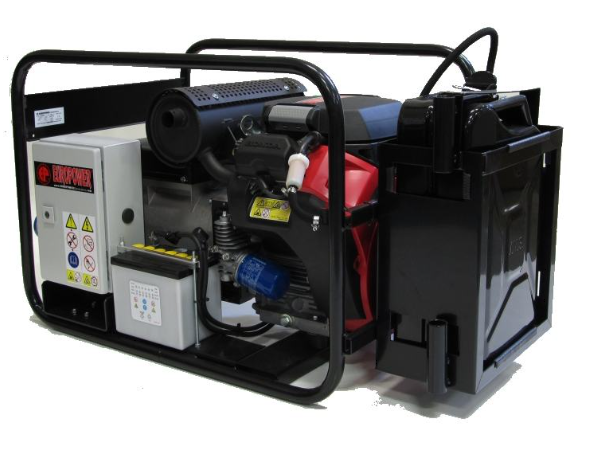

Europower standard generating sets with air-cooled gasoline engines, 3000rpm, 50Hz, 4 stroke
Generator:
- kVA max.: 10
- kVA cont.: 9
- kVA: 9kVA @ 1~230V 0kVA @ 3~400V
- Amps cont.: 39A @ 1~230V 0A @ 3~400V
- Dimensions l x w x h: 102x55x60cm
- Weight incl. oil (+ coolant if watercooled), excl. fuel: 146kg
- Weight incl. oil (+ coolant if watercooled) + fuel: 161kg
Engine:
- Brand/Type: Honda GX630 RH-VEP4
- HP max.: 19
- Power: 14kW max. (3000rpm), 2-cylinder
- Gasoline, Air-cooled
- Displacement: 688cm³
- Consumption @75% load: 4.2 litres/hour
- Tank: 20 litres
- Autonomy @75% load: 4.8 hours
- Noise level: 75dB(A)@7m (*)
- EU Emission norm: Stage V
- Battery voltage: 12V
- CO2 emission: 0 g/kWh
Alternator:
- Brand/Type Mecc Alte S20F-200/A - SAEJ609B No Sockets - brushless
- Nominal voltage: 3~400V and 1~230V
- Frequency: 50Hz
- Protection degree: IP23
- Generators with * cannot be used outdoors in the EU. For applications of generating sets indoors, or if you want to integrate these generators in vehicles, please contact us.
Version:
- 1 socket 230V - 16A + 1 socket CEE 230V - 32A
- Electric start, maintenance free battery included
- Frame
- Hour counter
- Oil guard
- Thermal magnetic breake
