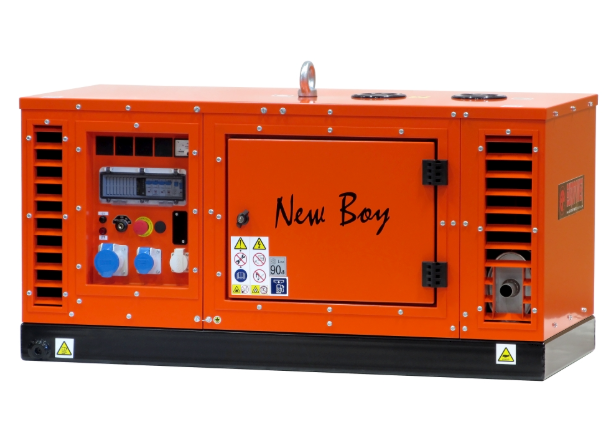

Europower super-silenced generating sets with Kubota water-cooled diesel engines, 3000rpm, 50Hz, 4 stroke
Generator:
- kVA max.: 9.5
- kVA cont.: 8.5
- kVA: 8.5kVA @ 1~230V 0kVA @ 3~400V
- Amps cont.: 37A @ 1~230V 0A @ 3~400V
- Dimensions l x w x h: 138x64x68cm
- Dry weight: 337kg
- Weight incl. oil (+ coolant if watercooled), excl. fuel: 345kg
- Weight incl. oil (+ coolant if watercooled) + fuel: 366kg
Engine:
- Brand/Type: Kubota D722 E4B-EUP-1
- HP max.: 15
- Power: 11.3kW max. (3000rpm), 3-cylinder
- Diesel, Water-cooled
- Displacement: 719cm³
- Consumption @75% load: 2.5 litres/hour
- Tank: 25 litres
- Autonomy @75% load: 10 hours
- Noise level: 67dB(A)@7m = LWA 92
- EU Emission norm: Stage V
- Battery voltage: 12V
- CO2 emission: 0 g/kWh
Alternator:
- Brand/Type Mecc Alte S20F-200/2A - No Sockets - brushless
- Nominal voltage: 3~400V and 1~230V
- Frequency: 50Hz
- Protection degree: IP23
Version:
- 1 socket 230V - 16A + 1 socket CEE 230V - 16A + 1 socket CEE 230V - 32A
- Central lifting eye
- Earth leakage protection 30mA with earth pin and 4m earth cable
- Electric start, maintenance free battery included
- Emergency stop
- Fuel pump 12V
- High temperature security
- Hour counter
- Low oil pressure guard
- Magneto-Stop
- Mechanical fuel level meter
- Oil drain pump
- Thermal magnetic breaker
- Voltmete
