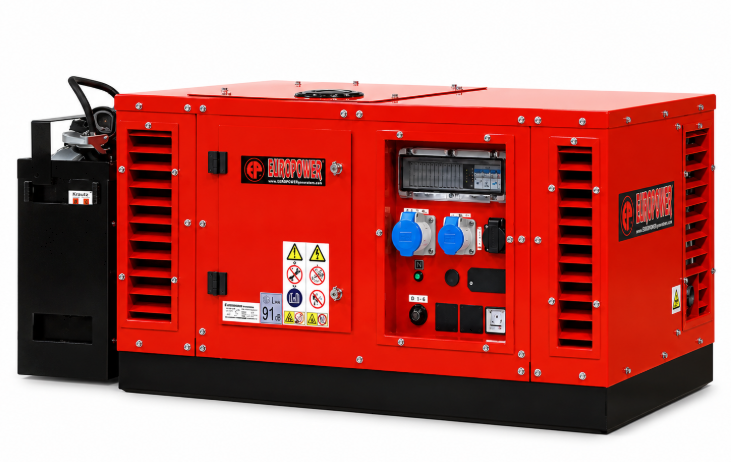

Europower super-silenced generating sets with air-cooled engines, 3000rpm, 50Hz, 4 stroke
Generator:
- kVA max.: 10
- kVA cont.: 8
- kVA: 8kVA @ 1~230V 0kVA @ 3~400V
- Amps cont.: 35A @ 1~230V 0A @ 3~400V
- Dimensions l x w x h: 127x64x57cm
- Weight incl. oil (+ coolant if watercooled), excl. fuel: 200kg
- Weight incl. oil (+ coolant if watercooled) + fuel: 215kg
Engine:
- Brand/Type: Honda GX630 RH-VEP4
- HP max.: 19
- Power: 14kW max. (3000rpm), 2-cylinder
- Gasoline, Air-cooled
- Displacement: 688cm³
- Consumption @75% load: 4.2 litres/hour
- Tank: 20 litres
- Autonomy @75% load: 4.8 hours
- Noise level: 66dB(A)@7m = LWA 91
- EU Emission norm: Stage V
- Battery voltage: 12V
- CO2 emission: 0 g/kWh
Alternator:
- Brand/Type Mecc Alte S20F-200/A - SAEJ609B No Sockets - brushless
- Nominal voltage: 3~400V and 1~230V
- Frequency: 50Hz
- Protection degree: IP23
Version:
- ▪ 1 socket 230V - 16A + 1 socket CEE 230V - 16A + 1 socket CEE 230V - 32A
- ▪ Electric choke
- ▪ Electric start, maintenance free battery included
- ▪ High temperature security
- ▪ Hour counter
- ▪ Oil guard
- ▪ Thermal magnetic breaker
- ▪ Voltmeter
